VIVOLTA’s electrospinning equipment turns one platform into many. From flat membranes to tubular scaffolds, the EC-CLI’s modular collectors, nozzles, and process-control modules install in minutes and run through the same touch-screen UI — so you can tailor a single system to virtually any application.
Maximum scaffold porosity with EM-LTE collector
EM-TMM thickness measurement variation (5σ)
Every add-on connects through a standardized mechanical and electrical interface, and is controlled through the EC-CLI’s integrated touch-screen UI — so expanding capability never means added complexity. Whether you need to produce highly porous scaffolds with a low-temperature collector, electrospin core–shell nanofibers through a coaxial nozzle, or monitor layer thickness in real time with laser metrology, each module is engineered for plug-and-play installation and immediate, reproducible results.
Below you’ll find every piece of electrospinning equipment available for the EC-CLI platform — collectors, nozzle systems, process-control modules, and accessories — all developed by the team behind VIVOLTA’s MediSpin™ clinical manufacturing system.
From millimeter-scale mandrels to large rotating drums and cryogenic collectors, the EC-CLI’s collector range covers every geometry and porosity requirement.
Large electrospun membranes with controllable fiber orientation

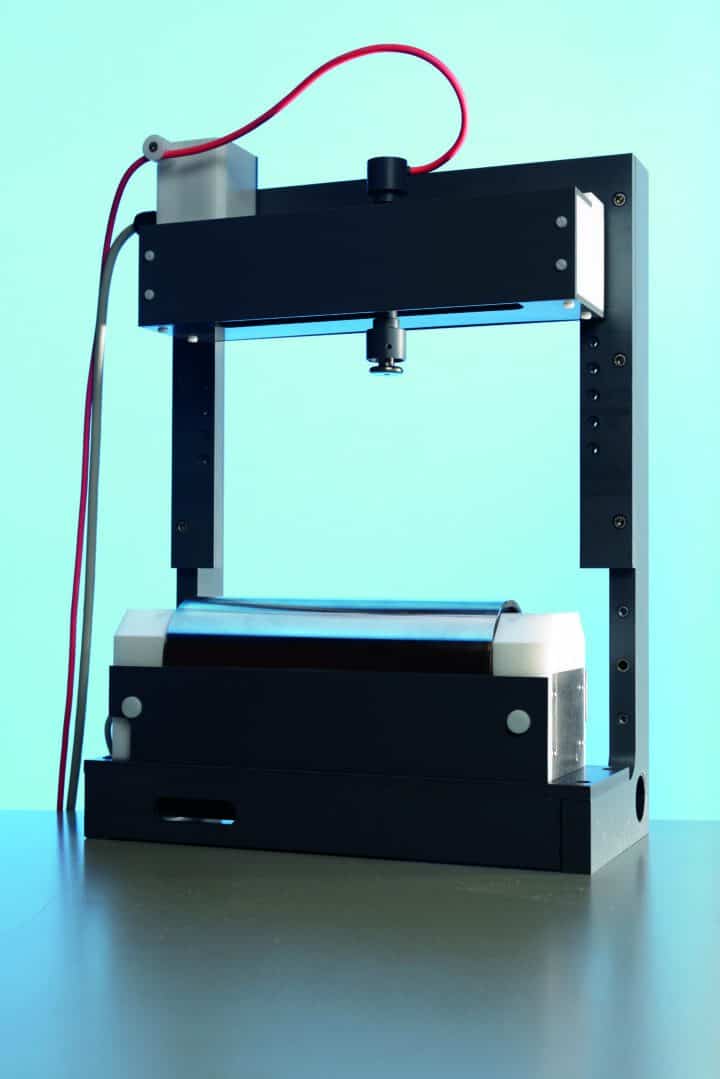

Collecting fibers on a moving, rotating surface enables larger membranes with consistent thickness and a high degree of alignment. The EM-RDC is a precision-balanced drum with a versatile nozzle translation stage, designed for efficient production up to 200 × 300 mm.
| Features | Benefits |
|---|---|
| Drum: Ø100 × 250 mm with cutting slit | Accurate motion with minimal field interference |
| Rotational speed: 0–2,500 rpm | Controlled fiber orientation for aligned structures |
| Nozzle stroke 200 mm · translation 0–350 mm/s | Efficient 200 × 300 mm membrane production |
| Vertical or horizontal placement | Compatible with all EC-CLI nozzle configurations |
| Controlled via the machine UI |
Tubular structures — virtually any shape, any dimension
The EM-RTC accommodates collector shapes from Ø0.5 mm mandrels up to Ø90 × 200 mm drums, producing both nonwoven and aligned tubular structures. Custom aluminum or stainless-steel targets with various surface finishes are built to order.
| Features | Benefits |
|---|---|
| Single-ended drive · Ø0.5–90 mm × up to 200 mm | One module, unlimited collector geometries |
| 0–2,500 rpm (4,000 rpm high-speed option) | High-quality balanced mandrels and drums |
| Nozzle stroke 200 mm · 0–350 mm/s | Controllable fiber orientation |
| Quick-release clamping | Minimal electric-field interference |
| Vertical or horizontal placement |
Highly porous scaffolds up to 99.8% porosity via cryogenic electrospinning
Low-temperature electrospinning embeds ice crystals from the surrounding atmosphere into the electrospun mesh. Once dried, the ice templates leave behind void spaces that dramatically increase scaffold porosity — an elegant route to controlled pore size and interconnectivity for tissue engineering.
| Features | Benefits |
|---|---|
| Drum: Ø90 × 180 mm | Porosity up to 99.8% |
| Rotation up to 500 rpm | Tuneable void-space size & distribution |
| Quick-release mechanism | Ideal for tissue-engineering scaffolds |
| Compatible with the EM-RTC drive unit | Simple workflow — no post-processing agents |
| Drum storage box included |
Expand fiber-architecture capabilities with coaxial core–shell nozzles and multi-nozzle spinnerets for higher throughput.
Core–shell nanofibers for encapsulation, reinforcement & surface functionalization
The EM-CAX electrospins coaxial nanofibers where core and shell are different materials — enabling fiber reinforcement, drug encapsulation, and surface functionalization with a tuned outer layer.
| Features | Benefits |
|---|---|
| Core (inner): 0.4 mm · shell (outer): 1.2 mm | High-quality nozzle, compact form factor |
| Adjustable core-tip protrusion: −1 to +2 mm | Fine-tuneable Taylor-cone formation |
| Gas cap with Taylor-cone shielding inlet | Compatible with all EC-CLI modules |
| Quick-release mounting | Pairs with EM-GSM for volatile solvents |
| Custom diameters on request |
Increase production rate with four parallel nozzles
By using four parallel nozzles the amount of deposited fiber is multiplied. The EM-MN4 is engineered for multi-fiber electrospinning, with two additional shadow nozzles for electric-field guidance. Other multi-nozzle configurations are available on request.
| Features | Benefits |
|---|---|
| 4-nozzle spinneret + 2 shadow nozzles | Up to 4× production rate |
| Inner Ø: 0.6 mm · pitch: 10 mm | Easy cleaning & seal replacement |
| Detachable shielding-gas caps | Compatible with all EC-CLI modules |
| Quick-release mounting | Compatible with EM-GSM gas shielding |
| Custom pitch, diameter, length on request |
Achieve unparalleled process stability, reproducibility, and integrated quality control on the EC-CLI platform.
Stabilize the Taylor cone & prevent nozzle clogging with volatile solvents
Solution-based electrospinning can suffer from premature solvent evaporation around the nozzle tip — causing Taylor-cone instabilities and clogging. The EM-GSM ejects a protective cloud of solvent vapor around the tip, maintaining a stable spinning environment even with highly volatile systems like dichloromethane or chloroform.
| Features | Benefits |
|---|---|
| Chemically resistant, exchangeable vaporiser | Prevents premature solvent evaporation |
| Compressed air or N₂ supply (3 bar / 43 psi) | Eliminates clogging and blob formation |
| Digital vapor flow rate: 0–1,000 ml/min | Continuous spinning of volatile solutions |
| Built-in remote flushing for nozzle cleaning | Compatible with all EC-CLI nozzles |
| Plug-and-play installation |
Eliminate static charge build-up for reproducible electrospinning
High voltages can build up electric charge on equipment and inside electrospun materials, disturbing the process. Mounted in the EC-CLI chamber ceiling, the EM-ASM uses fully controlled active ionization to neutralize accumulated charge before, during, and after spinning.
Accessories: Handheld charge meter for accurate tuning · Software upgrade for full machine-UI control · Replacement emitter set.
| Features | Benefits |
|---|---|
| Neutralises charge on equipment & fibers | Increased reproducibility |
| Fully automated via machine UI | Contactless static elimination |
| Compatible with all EC-CLI systems | Higher throughput & yield quality |
| Optional handheld charge meter | Reduces electrostatic dust contamination |
| Replacement emitter sets available |
Contactless, real-time layer thickness monitoring during electrospinning

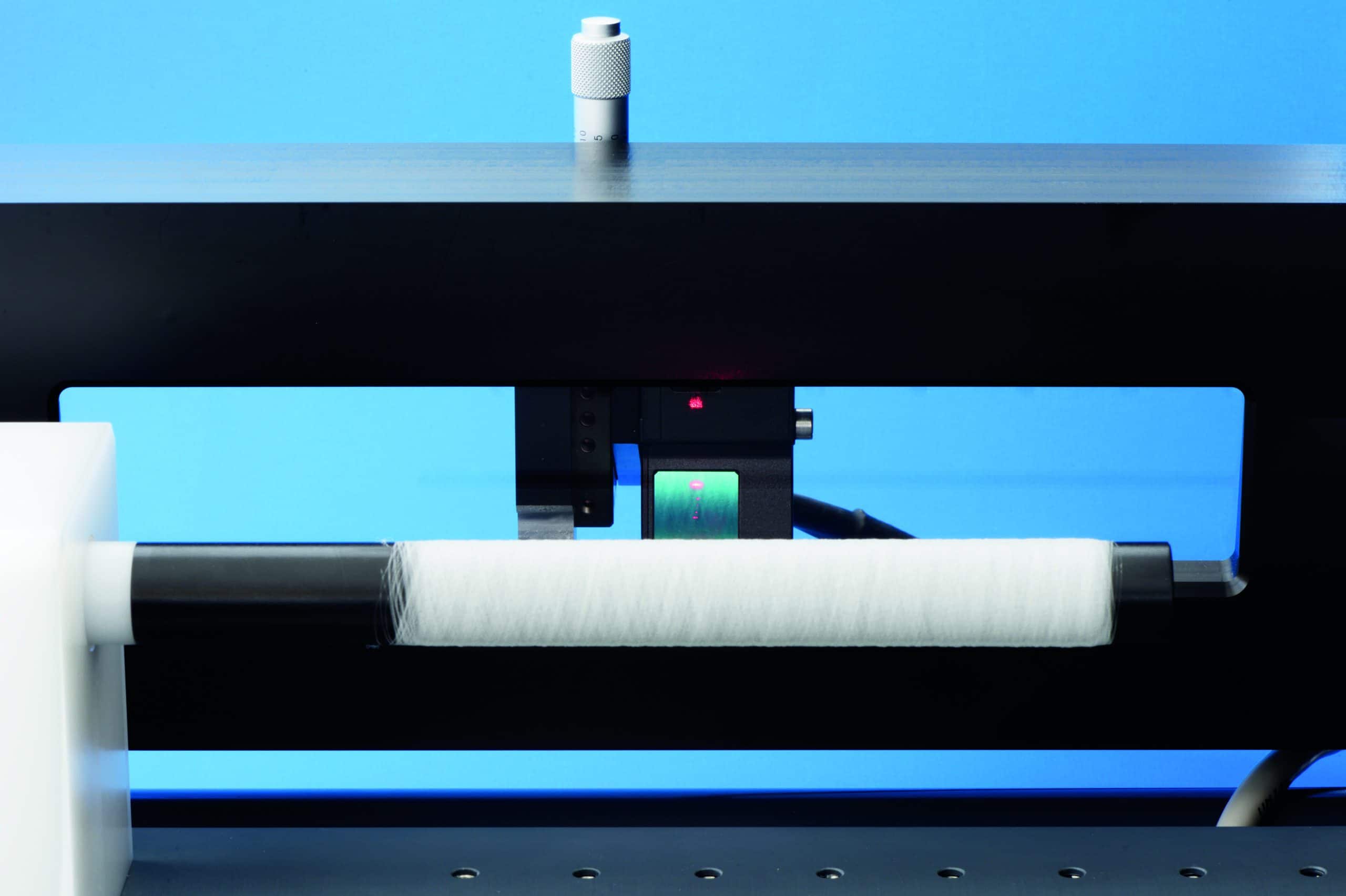

The EM-TMM uses laser-based differential distance measurement to monitor layer build-up at definable locations — even on highly porous structures and at high collector speeds. This patented technology represents one of VIVOLTA’s most innovative developments.
| Features | Benefits |
|---|---|
| Contactless laser measurement, multiple points | Non-destructive, integrated QC |
| Online monitoring even at high collector speeds | Early warning of process deviations |
| Variation typically 5σ < 50 µm | Minimises thickness-related waste |
| Custom single- & multi-point metrology frames | Accelerates process optimisation |
| Modular: laser heads + controller + frame |
Foundation components for material screening, multi-component spinning, and precision flow control.
The ideal starting point for material screening & parameter optimization
The EM-STD provides a flexible, manually adjustable mount for any nozzle and stationary collector. Paired with EM-CXX collector plates — 50, 100, and 150 mm diameters — it is the go-to setup for quick experiments and small non-woven membrane production.
| Nozzle Stand Features | Collector Plate Features |
|---|---|
| Horizontal and vertical placement | Polished surface for optimal performance |
| Spinning distance: 0–400 mm (manual) | Solid electrical connection on bottom |
| Compatible with all nozzles & plates | Carrier-material clamp (glass slide or foil) |
| Quick installation and removal |
Precision flow control by Harvard Apparatus — integrated into the EC-CLI UI
This high-performance OEM pump features dual syringe holders and delivers the accuracy required for the most demanding electrospinning applications. Multiple pumps can be linked for synchronous flow control in multi-component setups.
| Features | Benefits |
|---|---|
| Dual syringe holders: 0.5 µl – 140 ml each | Suitable for highly viscous solutions |
| Flow rate: 3.06 pl/min – 215.8 ml/min | Ultra-wide flow-rate range |
| Maximum linear pump force: 75 lbs | Seamless integration with the EC-CLI UI |
| Linkable for synchronous multi-pump operation | Manufactured by Harvard Apparatus |
| Additional ground connection to machine |
Multi-component electrospinning & increased production rates
Both EM-RDC and EM-RTC collector modules can be equipped with a second nozzle translation stage to enable simultaneous electrospinning of different materials, or to increase throughput. The EM-TNS uses the same specifications as the primary stages.
| Features | Benefits |
|---|---|
| Nozzle stroke: 200 mm | Multi-component fibre structures |
| Translation speed: 0–350 mm/s | Doubled production rates |
| Perpendicular orientation for small footprint | Flexible placement |
| Compatible with EM-RDC & EM-RTC |
Every piece of EC-CLI electrospinning equipment is engineered to work together — quick-release mounting, integrated software control, full inter-module compatibility.
Yes. VIVOLTA offers comprehensive on-site installation, user training programs, and ongoing technical support worldwide — including the US (Dallas, TX), Japan, and Australia. Our team provides guidance on system configuration, module selection, and process development. Custom process-development support is available from VIVOLTA’s in-house scientists, and extended service and maintenance packages keep your electrospinning equipment running at peak performance.
Several equipment strategies help. The EM-MN4 multi-nozzle uses four parallel nozzles to multiply fiber deposition. Adding an EM-TNS translation nozzle stage to the EM-RDC or EM-RTC collector enables a second nozzle to operate simultaneously, doubling throughput. Linking multiple EP-HRU syringe pumps gives synchronous flow control for multi-channel setups. All of these can be combined in a single session for maximum throughput.
Coaxial electrospinning produces core–shell nanofibers where the core and shell are different materials — enabling drug encapsulation, fiber reinforcement, and surface functionalization. You’ll need the EM-CAX coaxial nozzle (0.4 mm core, 1.2 mm shell — custom sizes on request) and typically two independent EP-HRU syringe pumps for independent flow control. The EM-CAX is also compatible with the EM-GSM gas shield for volatile solvent systems.
The EM-TMM uses a laser-based differential distance measurement principle. A laser module mounted on a precision metrology frame measures the distance to the collector surface and to the growing electrospun layer — calculating thickness from the difference. It works reliably even on highly porous structures. Variation is typically 5σ < 50 µm, and the system monitors layer build-up at one or more locations simultaneously, even at high collector speeds.
For flat membranes up to 200 × 300 mm with controllable alignment, the EM-RDC rotating drum collector is the standard choice. For tubular structures — from millimeter-scale vascular grafts to larger tissue-engineering tubes — the EM-RTC rotating target collector accepts custom mandrels and drums from Ø0.5 to 90 mm. If you need highly porous scaffolds with void-templating via ice crystals, the EM-LTE low-temperature collector achieves up to 99.8% porosity. For quick material screening, stationary EM-CXX collector plates on the EM-STD nozzle stand provide a simple, fast setup.
Yes. Every EC-CLI add-on module is designed with a plug-and-play architecture and can be added to any existing EC-CLI system at any time — no hardware modifications to the base machine are needed. Modules are controlled through the integrated touch-screen UI and, in most cases, require no additional software installation beyond optional upgrades.
